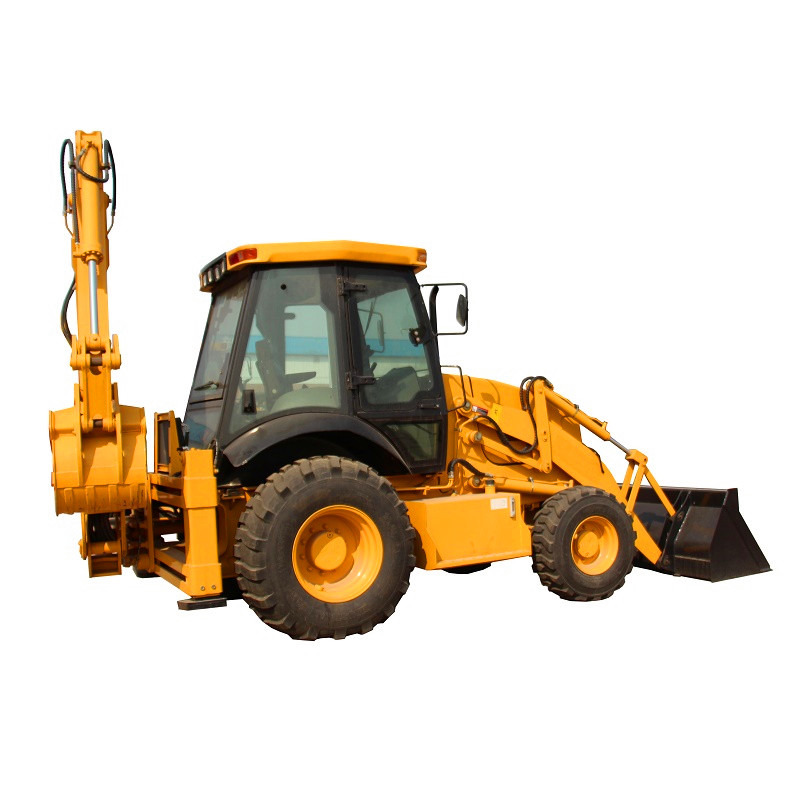

Name: Chinese High Quality Farms Mini Backhoe Excavator Wheel Loader , Operation Weight 8200KG
Brand: Chinese High Quality Farms Mini Backhoe Excavator Wheel Loader , Operation Weight 8200KG
SKU: WZ30-25C
Price: 31 USD
Availability: InStock
Rating: 4.9 (186 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Applicable Industries: Farms, Construction worksÂ

Showroom Location: None

Condition: New

Type: Backhoe Loader

Moving Type: Wheel Loader

Warranty: 1 Year

Machine Weight: 8200kg

Hydraulic Pump Brand: Liyuan

Engine Brand: Cumminn-s

UNIQUE SELLING POINT: High operating efficiency

Power: 75 KW

Bucket capacity: 1m3

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Marketing Type: New Product 2020

Warranty of core components: 1 Year

Core Components: Engine

backhoe loader: Chinese High Quality Mini Backhoe Excavator wheel Loader,

Engine: CUMMINN-S

Rated Power: 75KW

front bucket size: 1m3

digging bucket size: 0.3m3

Operating weight: 8200kg

Model: WZ30-25C

Rated Load: 2500kg

warranty: 1year

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: None

After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts

Certificazione: ISO

Informazioni di base

Certificazione: ISO

Model Number: WZ30-25C

Termini di pagamento e spedizione

Packaging Details: 1PC/40HQ, NUDE PACKING

Descrizione di prodotto

Chinese High Quality Mini Backhoe Excavator wheel Loader,

Main Features

1. Four-wheel drive system

2. Air-conditioned luxury cabin, 360-degree rotary seat

3. More stronger unit frame, compact structure

4. H type outrigger, swing boom

5. Backhoe slide device provides bigger working range

6. Joystick control, high efficiency

7. Powerful gearbox with strong axle, dry type brake system, easy maintenance

8. Many accessories are available according to customer requirement

Main Performance
Operation Weight		8200 KG
Shipment Dimensions		6150×2250×3763 mm
Min. Ground Clearance		300 mm
Loading Bucket	Bucket Capacity	1 m3
	Breakout Force	38 KN
	Loading Lifting Capacity	2500 KG
	Bucket Dumping Height	2742 mm
	Bucket Dumping Distance	1062 mm
	Bucket Digging Depth	52 mm
	Bucket lifting Time	5.4 s
	Bucket Dumping Time	2.0 s
	Bucket Lowing Time	3.1 s
Backhoe	Bucket Size	0.3 m3
	Max. Digging Depth	4082 mm
	Swing Angle	190 degree
	Max. Tracking Force	39 KN
	Max. Bucket Digging Force	46.5 KN
	Max. Arm Digging Force	31 KN
Engine System
Engine Model		CUMMIN-S
Engine Power		75 kw/2400rpm
Engine Type		In line direct injection, four-stroke and Injection combustion chamber
Max. Torque		310 N.M
Displacement		3.3 L or 4.3 L
Min. Fuel Consumption		239 g/km.h or 235 g/km.h
Transmission System
Gearbox Type		Fixed shaft power transmission
Oil Pressure of Clutch		1373 Kpa-1569 Kpa
Shift Gears		2F/2R
Max. Travelling Speed		22 km/h
Torque Coverter Model		YJ280
Converter Type		Single-stage, three elements
Max. Efficiency		84.40%
Inlet Pressure		0.4 Mpa—0.55 Mpa
Outlet Pressure		1.2 Mpa—1.5 Mpa
Cooling Methord		Oil-cooling, pressure circulation
Steering System
Model of Steering Gear		BZZ5-250
Steering Angle		36 degree
Min. Turning Radius		6581 mm
Hydraulic Pressure		12 Mpa
Axle and Tyre
Main Reducer Type		Double reduction
Hub Reducer Type		Single stage final reducer
Axle Rated Load		4/18.5 Ton
Front Tyre Size		14-17.5
Rear Tyre Size		19.5L-24
Tyre Pressure(F/R)		0.22 Mpa
Brake System
Service Brake		Air over oil caliper brake, external type
Parking Brake		Manual
